Cable Trays and Ladders: Detailed Selection and Practical Application Guide
The organization of cable management in modern industrial facilities and commercial buildings directly affects the stability and safety of all engineering communications. Cable trays and cable ladders are key solutions for the proper placement and support of cable routes. Their design features, the quality of materials and the approach to operation determine how well the cables will be protected from overheating, moisture, mechanical damage and electromagnetic interference. Reliable cable tray manufacturers in uae, as well as proven cable tray suppliers in dubai, offer their products to help you choose the best options for any task.
Types of Cable Systems and Design Solutions
Cable trays are a metal element with a perforation or with a completely closed bottom. Perforated modifications ensure unobstructed air passage and promote heat dissipation, which is critically important when laying a large volume of wires in one channel. Solid models reliably insulate cable lines from dust, moisture and small debris. Most often, the length of the standard segment reaches 3 meters and is complemented by cable tray accessories that simplify installation.

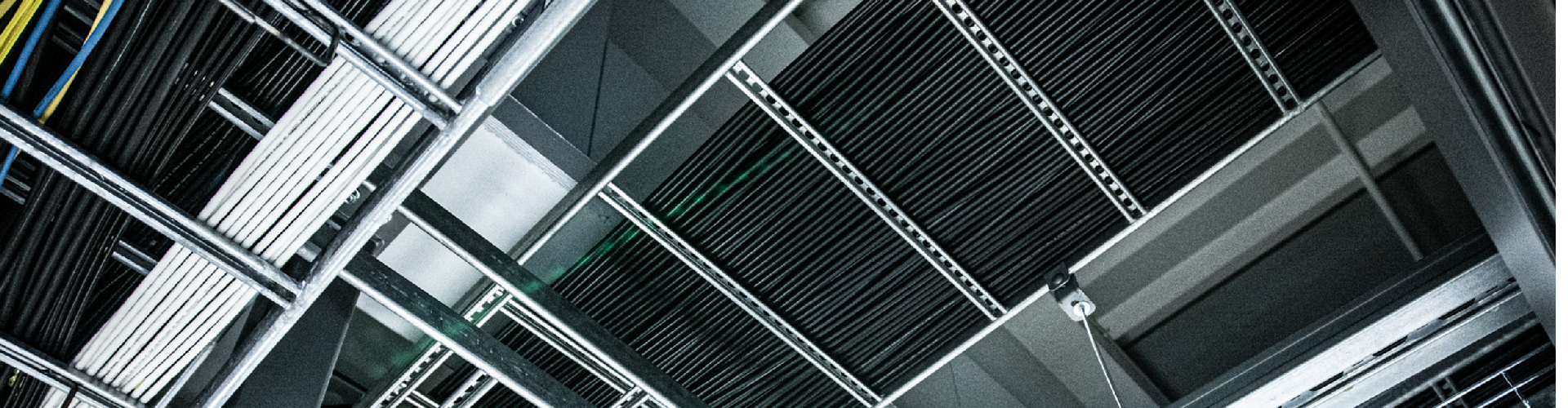

Cable ladders are a separate category. They are distinguished by the presence of two side profiles and transverse stiffeners. This design guarantees good ventilation and minimal condensation build-up. In this case, the cables can be laid and, if necessary, dismantled anywhere in the span. Due to these qualities, ladder cable trays are widely used in projects where reliable laying of heavy cables over long sections is required. For such systems, products from reputable cable ladder manufacturers are often purchased. The most common section sizes are 3 or 6 meters.
Mesh wire trays and baskets are well suited for systems where rapid configuration changes or regular installation of low-current cables are required. Lightweight and easy-to-maintain solutions of the wire mesh cable tray and mesh cable tray class are in demand in IT centers and administrative buildings.
Materials and Operational Qualities
The selection of the material directly depends on the operating conditions of the cable system:
- Galvanized steel is ideal for industrial premises and outdoor installation. Such trays are usually equipped with a cable tray and accessories, which increases the reliability of the system and its service life.
- Stainless steel is most often used in the food, pharmaceutical and chemical industries. Stainless steel c channel is used to strengthen the structure and provide corrosion protection.
- Aluminum is valued for its low weight and ease of installation, while the material has high corrosion resistance.
- Fiberglass is used in aggressive environments and in facilities with special requirements for electrical insulation and fire resistance.
- With proper installation and compliance with standards, the service life of steel and aluminum trays often exceeds 20-40 years.
Load Parameters and Installation
Cable ladders are best suited for laying heavy mains and large bundles of cable. Their profile is designed so that the load is evenly distributed and the risk of overheating is minimized. If the load requirements are average, perforated trays are used, which at the same time maintain good ventilation. In administrative or office spaces where aesthetics are important, solid structures and mesh baskets are often chosen.
The systems can be installed using different methods: wall mounting, ceiling mounting, or floor mounting. Depending on the project, brackets, suspension elements and a slotted channel are used. In some cases, c channel steel is used to increase strength. When working in conditions of high humidity, it is important to provide covers and high-quality electrical cable tray accessories that prevent moisture and dust from entering inside.
The design documentation must take into account IEC-61537 standards and NEMA recommendations, and the products from wire mesh cable tray manufacturer fully comply with international standards.
Maintenance and Regular Inspection
The open design of the cable ladders makes the system easy to operate. This allows you to quickly check the condition of cables, change or add lines without dismantling the trays. In closed versions, it takes longer to access the tracks.
Periodic monitoring includes inspection of the condition of the coating, the reliability of fasteners and the integrity of cables. In facilities with aggressive environments and frequent temperature fluctuations, it is preferable to use stainless steel and aluminum. It is also recommended to regularly clean and inspect cable basket accessories to avoid dust accumulation and extend the service life of the cable system.
Flexibility of Configuration and Aesthetic Solutions
If the building does not have a suspended ceiling, cable trays help to hide the cable lines and ensure a neat appearance. Modular systems make it possible to subsequently change routes or add new cables without complicated disassembly. For a more comprehensive organization, Cable Trunking Systems and components from cable trunking suppliers are used, which allows future changes to be taken into account from the very beginning.
Underfloor trunking is often used for careful and hidden laying of communications, which allows cables to be laid under a raised floor.
Final Recommendations
When choosing a suitable system, it is important to take into account the loads, operating conditions and installation features. Cable Ladders are ideal for heavy lines with high ventilation and load capacity requirements. Solid and perforated models provide reliable protection against contamination and reduce the effects of electromagnetic interference. When designing the system, it is necessary to take into account IEC-61537 and NEMA standards and check compatibility with cable tray accessories dubai. Products from experienced cable tray suppliers in uae allow you to create long—lasting cable routes designed for a wide variety of facilities - from manufacturing plants to data centers and offices.
