UAE Solar & Rooftop PV Cable Routing: Impacts on Trays, Ladders, and Support Spacing
The rapid expansion of rooftop solar and photovoltaic (PV) installations across the UAE has shifted attention from panel efficiency alone to the long-term reliability of supporting electrical infrastructure. While modules and inverters are often specified with detailed performance warranties, cable routing systems trays, ladders, and structural supports are frequently under-engineered, despite being exposed to some of the harshest operating conditions in the region. At West Port Middle East, project audits repeatedly show that premature failures in solar installations are rarely electrical in origin; instead, they are mechanical and thermal, driven by UV exposure and continuous thermal cycling, even when the baseline specification starts with cable tray manufacturers in UAE.

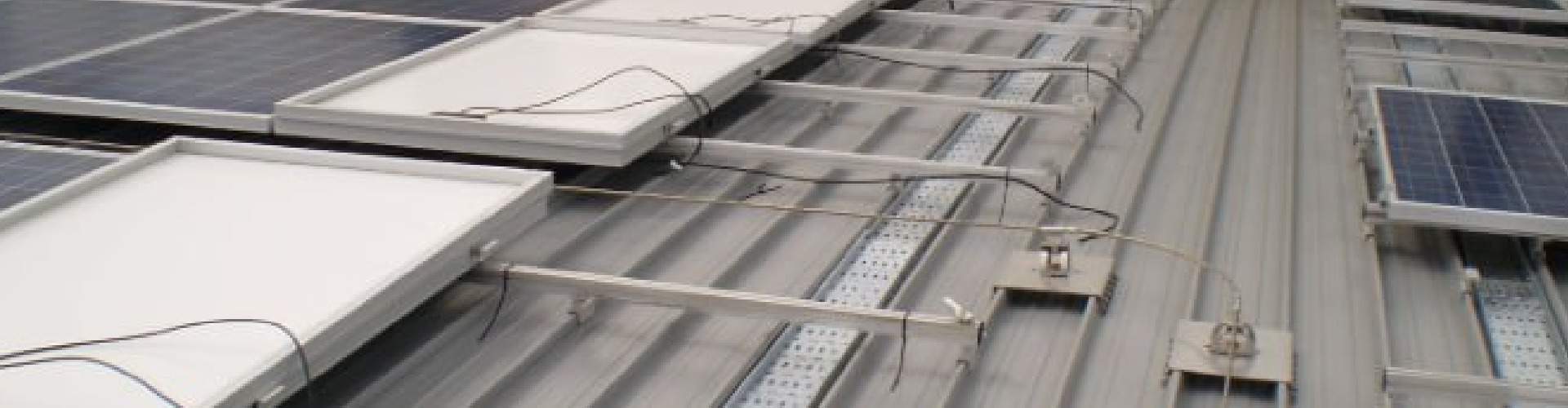

In the UAE, rooftop PV cable management systems operate in an environment defined by extreme solar radiation, high ambient temperatures, and daily expansion–contraction cycles. These conditions fundamentally change how cable trays, ladders, and support systems behave over time.
UV Exposure: Ongoing Material Wear And Surface Damage
Unlike milder climates, UAE rooftops are exposed to intense ultraviolet radiation throughout the year. Exposed metal surfaces can reach temperatures above 60–65°C, while polymer-based components such as cable insulation are continuously subjected to heat and UV stress, tray coatings, and non-metallic accessories experience accelerated aging. UV radiation degrades protective finishes, leading to coating chalking, micro-cracking, and eventual exposure of base metal.
For cable trays and ladders, this degradation manifests first at:
- Cut edges and perforations
- Splice joints and fastener interfaces
- Accessory contact points
Once protective layers are compromised, corrosion initiates rapidly, particularly in coastal and high-humidity zones. Field inspections across rooftop PV projects indicate that unprotected or incorrectly finished tray systems can show visible deterioration within 18–24 months, well before the expected lifecycle of the solar plant itself.
Thermal Cycling: The Invisible Structural Load
Thermal cycling is a more subtle but equally damaging force. Rooftop PV cable routes experience daily temperature swings of 30–40°C, not seasonal variation. Steel expands approximately 12 µm per meter per degree Celsius, meaning long tray or ladder runs can move several millimeters each day. Aluminium systems experience even greater movement.
When trays and ladders are rigidly fixed without allowance for expansion:
- Splice bolts elongate holes
- Side rails bow or twist
- Supports experience cyclic fatigue
Over time, this movement transfers stress into anchors, brackets, and rooftop interfaces. Data from regional solar installations shows that support-related failures are among the most common maintenance issues, particularly where standard indoor spacing rules are applied to rooftop environments.
Tray And Ladder Selection For PV Applications
In rooftop PV systems, tray and ladder selection must balance load, airflow, and thermal behavior. Solid-bottom trays may offer cable protection but tend to trap heat, increasing conductor temperature and accelerating insulation aging. Ladder systems and open-profile trays reduce heat accumulation but require careful spacing and restraint logic.
Best practice observed across durable UAE installations includes:
- Using open or ventilated profiles to limit heat buildup
- Avoiding continuous rigid runs exceeding recommended thermal limits
- Selecting finishes suitable for UV and salinity exposure
The choice is not purely structural; it directly affects cable temperature, system efficiency, and long-term safety.
Support Spacing Under Rooftop Conditions
Manufacturer span tables are typically derived from controlled indoor conditions. On rooftops, elevated temperatures reduce material stiffness, requiring conservative derating. Experienced designers in the UAE commonly reduce support spacing by 15–25% for rooftop PV installations, particularly where DC cable density is high.
Key engineering considerations include:
- Shorter spans near expansion zones
- Supports placed close to splice locations
- Avoiding maximum spans at points of thermal movement
Improper spacing allows trays to sag under load, creating low points where thermal movement concentrates stress and accelerates fatigue.
The Overlooked Role Of Movement Control
Thermal movement must be managed, not restrained. Effective rooftop PV cable routing incorporates:
- Defined anchor points
- Guided supports that allow axial movement
- Controlled expansion zones within long runs
Without a proper movement strategy, even well-coated systems gradually lose their shape over time. Field observations show that most rooftop tray distortions result from incorrect support and restraint methods rather than material failure.
Designing For A 25-Year Solar Lifecycle
Rooftop solar systems are typically designed for operational lifespans exceeding two decades. Cable management infrastructure must match this expectation. Systems that fail early introduce safety risks, downtime, and costly retrofits often requiring partial decommissioning of PV arrays.
At West Port, our approach to solar cable routing emphasizes:
- Climate-specific material selection
- Thermal movement engineering
- Long-term inspection and maintenance practicality
Cable trays, ladders, and supports are not secondary elements in PV projects; they are structural systems operating under constant environmental stress.
Engineering Beyond Compliance
In the UAE’s solar sector, compliance with minimum standards is insufficient. UV exposure and thermal cycling redefine how rooftop cable routing systems perform, demanding a design approach grounded in regional reality rather than generic assumptions.
By engineering tray selection, ladder configuration, and support spacing specifically for rooftop PV conditions, project stakeholders can avoid predictable failures and extend system life in line with solar asset expectations. From West Port’s perspective, durable solar infrastructure is achieved not through heavier materials alone, but through controlled movement, appropriate finishes, and disciplined support design using slotted channel. In a climate where the sun is both the energy source and the primary stressor, cable routing systems must be designed to endure both heat and time.
